Product Description

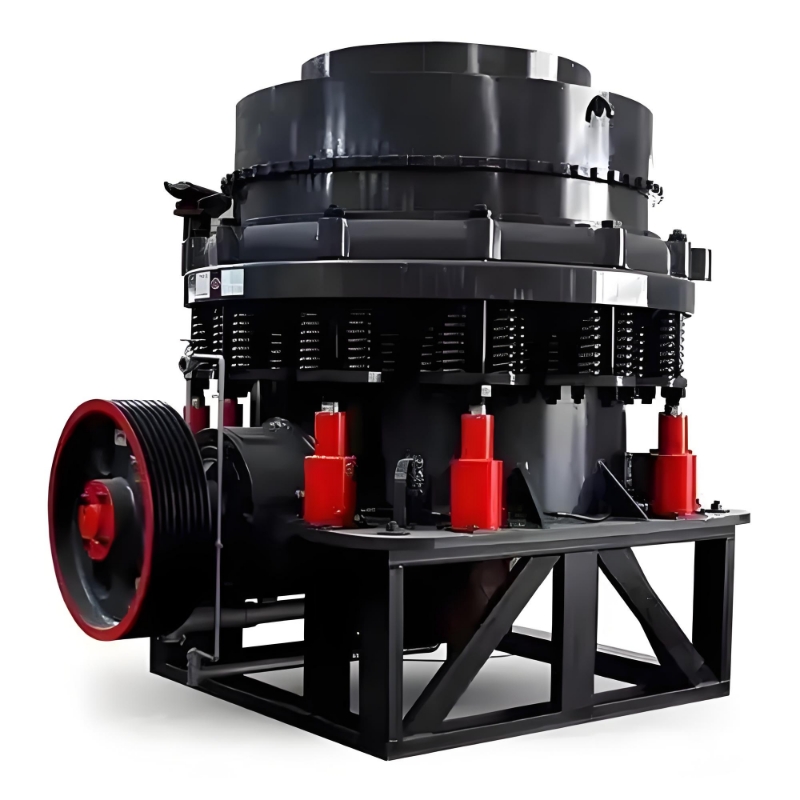

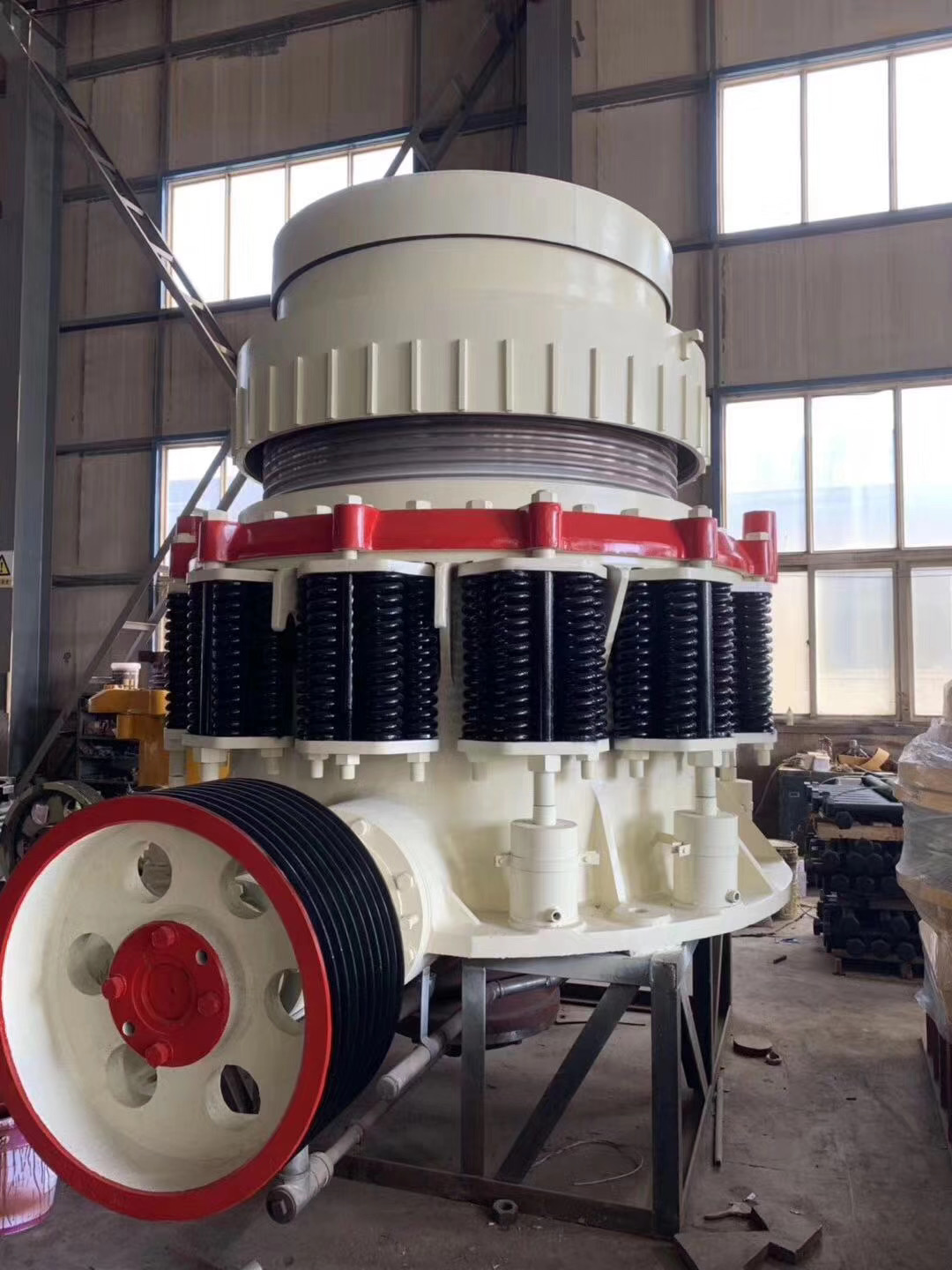

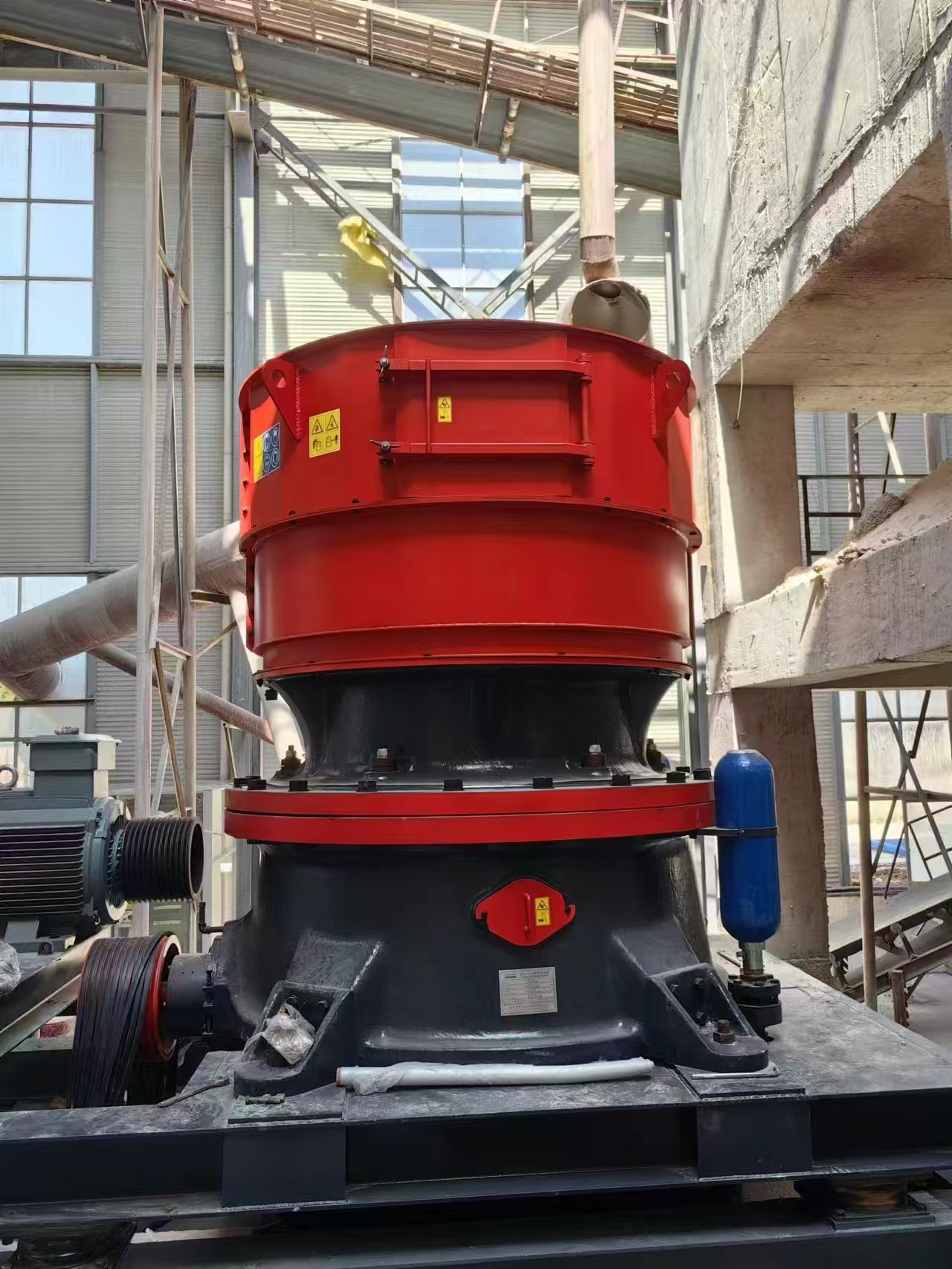

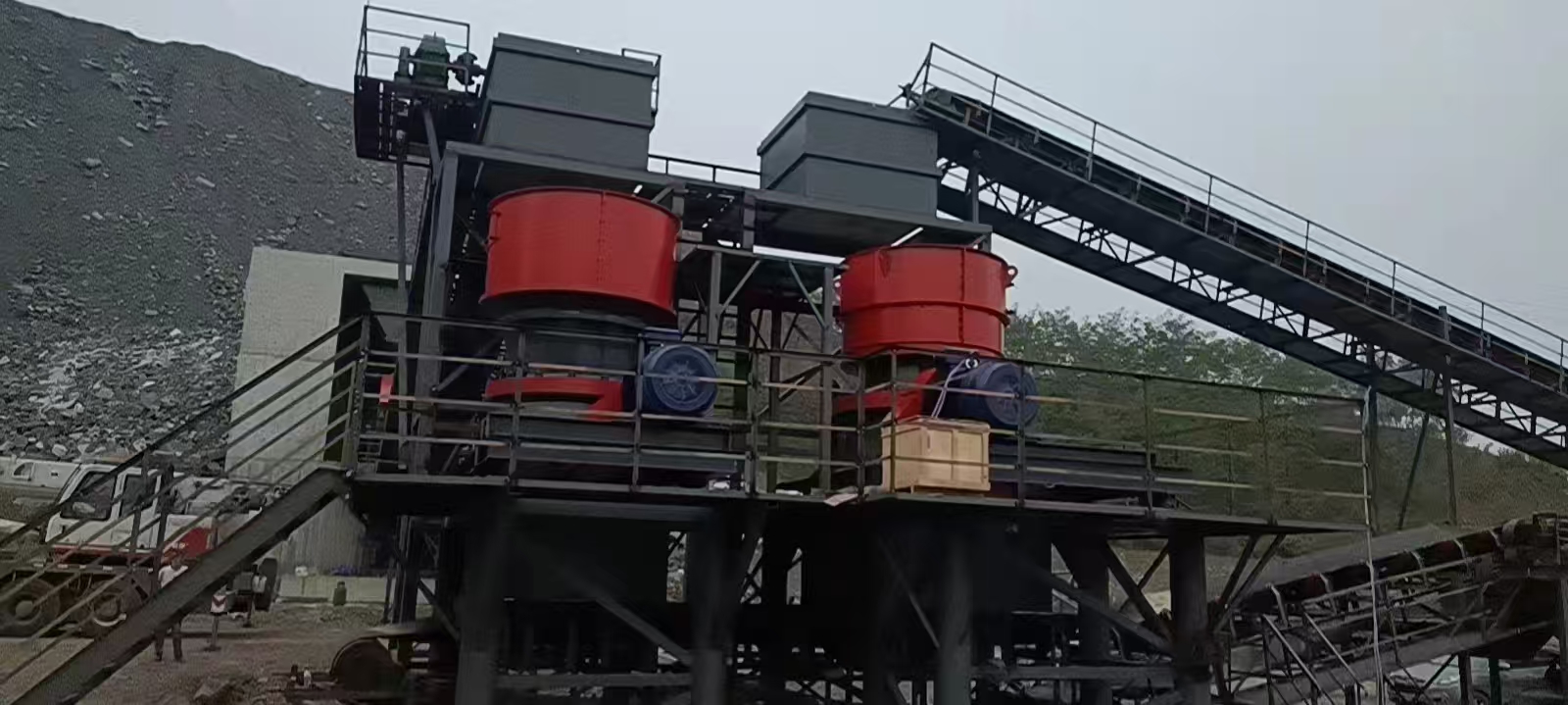

The cone crusher is an efficient and stable equipment for medium and fine crushing of stone materials. It mainly crushes materials through the squeezing, bending, and shearing actions between the moving cone and the fixed cone. Its advanced hydraulic system ensures the stability of operation, has an automatic cavity adjustment function, overload protection, and is easy to maintain. It is particularly suitable for crushing stone materials of medium hardness or above, such as granite, basalt, iron ore, river pebbles, etc. Conical crushers are commonly used in the secondary or tertiary crushing stages of the crushing production line. They are used in conjunction with jaw crushers, impact crushers, sand-making machines, and other equipment to form a complete sand and stone or mineral production line.

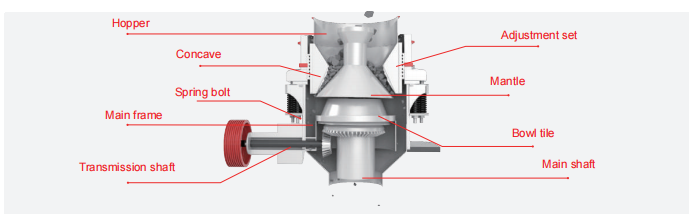

The cone crusher is driven by an electric motor, which rotates the eccentric shaft through a pulley or coupling. The eccentric shaft causes the moving cone to make periodic oscillations within the fixed cone, thereby creating a constantly changing crushing space.
After the material enters the crushing chamber, it will be continuously compressed and crushed between the moving cone and the fixed cone, gradually being broken down into smaller particles. The material that meets the requirements will be discharged from the bottom discharge port, while the material that does not reach the desired particle size will remain in the crushing chamber for further crushing. By adjusting the size of the discharge port, the particle size of the finished product can be flexibly controlled to meet different production requirements.
Relying on a professional R&D team and a wealth of practical project experience, we can customize cone crushers and overall crushing solutions for our customers based on their material types, production requirements, product particle size, and on-site conditions. This helps our customers achieve efficient, stable, and low-cost long-term production.
Technical Parameters
| Model | Feed Size (mm) | Output Size (mm) | Capacity (t/h) | Motor Power (kW) | Weight (kg) |
|---|---|---|---|---|---|
| LD-100 | ≤120 | 8–25 | 50–100 | 75 | 6800 |
| LD-150 | ≤150 | 10–30 | 100–180 | 110 | 9800 |
| LD-200 | ≤180 | 12–35 | 180–250 | 160 | 12500 |
| LD-300 | ≤200 | 16–40 | 250–350 | 220 | 15800 |
Custom configurations available for larger Cone Stone Crusher.
Product Features
Laminated Crushing Technology
The Cone Stone Crusher produces higher-quality sand with less needle-like material.
High Production Efficiency
Stable crushing performance ensures continuous high-capacity output.
Hydraulic Adjustment System
Allows real-time cavity control and automatic tramp release for safe operation.
Long-Lasting Wear Parts
Reinforced liners and crushing components reduce downtime.
Energy-Saving Design
The Lithotripter for Sand Making consumes less power without compromising performance.
Excellent Particle Shape
Ideal for premium-grade sand, concrete aggregates, and infrastructure materials.
Low Maintenance & Easy Operation
Simple structural layout ensures fast inspection and part replacement.
Application Scenarios
Conical crushers are widely used in:
• Mining operations
• Sand and gravel production lines
• Highway and railway construction projects
• Water conservancy, power generation and large-scale infrastructure projects
• Metal and non-metal mineral crushing
Whenever high-quality sand or fine aggregates are required, the Cone Stone Crusher provides consistent, high-performance results.
About Us
Leading Environmental Technology Co., Ltd. is a professional manufacturer of advanced crushing and sand-making equipment, specializing in the Cone Stone Crusher, impact crushers, jaw crushers, sand washers, and complete crushing solutions. With strong engineering capabilities and strict quality control, we deliver equipment trusted by mining, quarrying, and construction industries worldwide.
Our mission is to provide efficient, durable, and environmentally responsible machinery that supports sustainable production and long-term business success. From technical consultation to installation, training, and after-sales service, Leading Environmental Technology Co., Ltd. delivers professional support to clients across Asia, Africa, Europe, South America, and the Middle East.
We continue to innovate to upgrade our Rock Breaker and other equipment, striving to become a global leader in intelligent sand-making and crushing solutions.
80–200 tons per hour
50 tons per hour is relatively small.
Within 20 cm
Yes, it can.
No more than 3%
